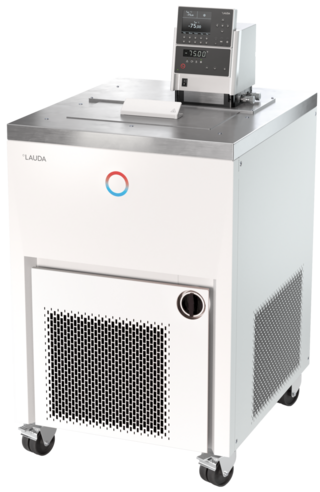

Proline Kryomate RP 3090 C

Proline Kryomate 分为风冷或水冷规格,浴槽开口大,并且浴槽容量为 30 或 40 升。

订购编号: L001702

性能特征

Thermostatic bath/circulator with latest microprocessor technology and integrated cooling system
Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature
SelfCheck Assistant for system diagnosis
Low level and overtemperature protection for use with non-flammable liquids
Programmer with 150 temperature/time segments that can be separated into 5 programs
Adjustment of bath circulation according to application
Electronically-controlled heating of bath edge and bath bridge prevents moisture in the atmosphere from condensing and freezing at low temperatures
Back-lit graphic LCD display with high resolution and different display modes
Command console can be detached and used as remote control
Fully electronic continuous controller with PID action for internal & external control
Optically decoupled RS 232/485 interface integrated as a standard
Timer function for switching on the thermostat, entering the standyby mode or running of programs
Pump connectors on the side and in the back, installed bypass
Condenser cooling Air
Additional green LED display for temperature
EasyUse system for simple operation of the whole unit
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)
LAUDA Vario pump with 4 selectable output steps
SmartCool system for energy-saving digital cooling management including compressor on-off control
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024

工作范围

最小工作温度

-90 °C

最大工作温度

200 °C

温度稳定性

0.05 ± K

技术特征(依据 DIN 12876)

工作温度范围
-90 ... 200 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.05 ± K
最大加热功率
2.8 kW
最大功率消耗
7 kW
电流消耗
25 A
最大输送压力
0,5 bar
泵最大输送流量(压力)
19 L/min
输入/输出连接螺纹(外部)
M16 x 1
最小/最大浴槽容积
23,0 / 31,0 L
尺寸(宽x深x高)
600 x 700 x 1216 mm
重量
167 kg
电源供应
200 V; 3/PE; 50/60 Hz
电源插头
不带插头的电源线 (HAR)
TemperaturPumpenstufeTemperiermediumKälteleistung 50 HzKälteleistung 60 Hz
200 °C2Thermoöl3 kW3 kW
20 °C2Ethanol3 kW3 kW
0 °C2Ethanol2,9 kW2,9 kW
-20 °C2Ethanol2,5 kW2,5 kW
-30 °C2Ethanol2,3 kW2,3 kW
-40 °C2Ethanol2 kW2 kW
-50 °C2Ethanol1,6 kW1,6 kW
-60 °C2Ethanol1,3 kW1,3 kW
-70 °C2Ethanol0,8 kW0,8 kW
-80 °C2Ethanol0,5 kW0,5 kW
-90 °C2Ethanol0,15 kW0,15 kW
