Universa ECO

LAUDA Universa immersion thermostats with advanced electronics guarantee precise control accuracy.

Part no. : L003995
Inquire about product
more about the benefits of Universa

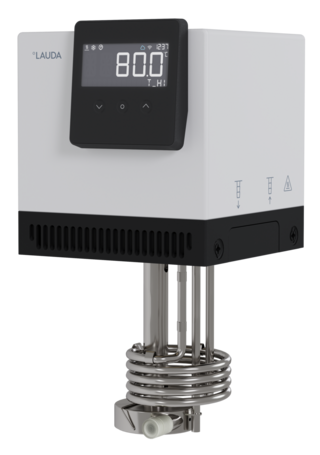

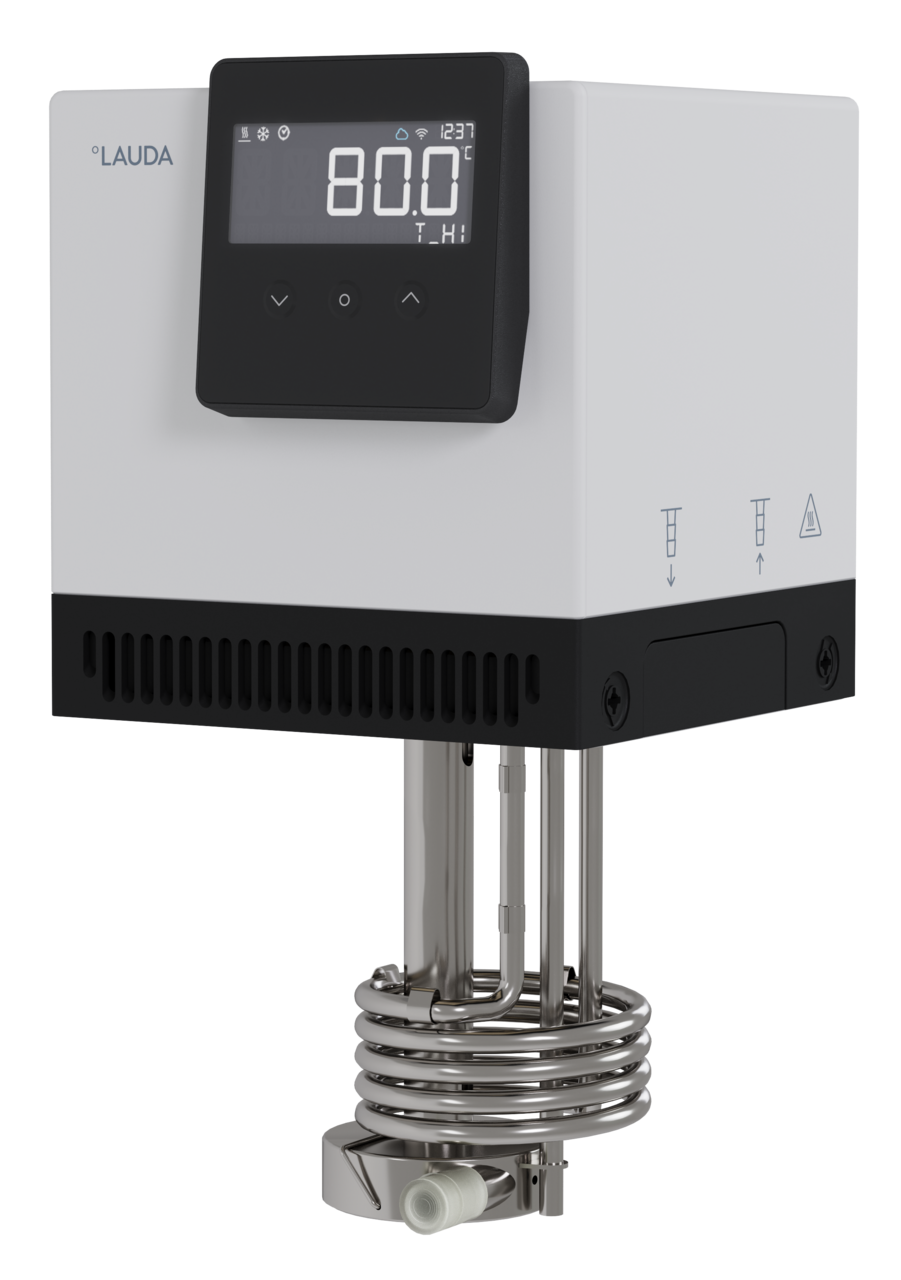

Immersion thermostats Universa ECO
WLAN capable - Icon
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Immersion thermostats

Features

Bath circulation thermostat for standard temperature control tasks up to 100 °C – reliable and intuitive to use.
Reliable circulation pump with flow reduction for adjusted volume flow and constant pressure.
Modern connectivity thanks to standard integrated Ethernet and USB interfaces for reliable data communication.
Integrated Wi-Fi communication: The device may only be imported and used in certified countries and regions: United States of America, Canada, EU including the UK and Switzerland, and India.
Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements.
Integrated timer with countdown function for time-controlled temperature control processes.
Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone.
Bright VA LC display with clear two-line display and intuitive 3-button operation.
Intelligent remote control and monitoring: Integrated web server allows flexible remote control in the company network via the LAUDA Command app or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables global, cloud-based data analysis and remote maintenance.
Proven safety features: low-level and overheating protection for operation with non-flammable liquids, audible and visual alarm signals.

Working range

Min. working temperature

Min. working temperature

35 °C

Max. working temperature

Max. working temperature

100 °C

Temperature stability

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
35 ... 100 °C
Working temperature range with water cooling
20 ... 100 °C
Operating temperature range
-30 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Max. power consumption
2.4 kW
Current consumption
10 A
Max. discharge pressure
0,2 bar
Max. pump flow pressure
15 L/min
Dimensions (WxDxH)
195 x 231 x 307 mm
Weight
4 kg
Power supply
200-240 V, 50/60 Hz
Power plug
Power cord with plug (GB2099, 15934)
Download Data sheet Universa ECO
Oops, an error occurred! Code: 20260401052912d112247f

Accessories

Quick coupling set
Quick coupling set
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
