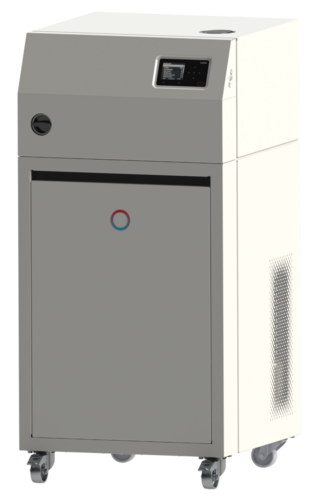

Variocool VC 10000 W NRTL

All models are available in air- or water-cooled versions (W) and are equipped with steerable fixed castors. With the integrated web server a browser-based operation is possible. Three additional interface modules can be integrated via slots on the back of the device.

Part no. : L002825
Inquire about product
Circulation and process thermostats Variocool VC 10000 W NRTL
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Circulation and process thermostats

Features

Process thermostat suitable for use with non-flammable heat transfer liquids
Easy input via cursor and soft keys
Electronic level indication and low level alarm
Slots for interface modules on the backside of the device
Integrated programmer with max. 150 segments, splitable in 5 programmes
Adjustable bypass for pressure limiting
Management of heat transfer liquids with stored properties
HARTING connector (4-pin) for connecting a mains cable
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
SmartCool system for energy-saving digital cooling management including compressor on-off control
USB and Ethernet interface equipped as standard
Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption
Digital display of pump pressure
Operates with non flammable liquids (water,water/glycol)
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
Fully electronic continuous controller with PID action
Remote fault indication through floating contact
Upgradeable with Pt 100/LiBus module for external control and remote control via Command Touch console
Powerful pressure pump
Filler opening on top, drain tap on the backside
Condenser cooling Water

Working range

Min. working temperature

-25 °C

Max. working temperature

80 °C

Temperature stability

0.1 ± K

Technical data (according to DIN 12876)

Working temperature range
-25 ... 80 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.1 ± K
Heater power min.
15.8 kW
Heater power max.
17 kW
Current consumption
25 A
Max. discharge pressure 50 Hz
5.3 bar
Max. flow rate (pressure) 50 Hz
63 L/min
Max. discharge pressure 60 Hz
7.3 bar
Pump Flow Max Pressure 60 Hz
75 L/min
In / Outlet connection thread (outside)
G 1 1/4"
Pressure adjustment
bypass
Min. filling volume
52 L
Max. filling volume
65 L
Water cooling connection thread (outside)
3/4 ″
Recommended cooling water temperature
15 °C
Cooling water flow rate
24 L/min
Pressure difference cooling water min.
3 bar
Maximum pressure cooling water
10 bar
Noise level
72 dB(A)
Dimensions (WxDxH)
650 x 675 x 1350 mm
Weight
154 kg
Power supply
400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
Power plug
---
Certification
NRTL according to UL 1995:2018, CSA C22.2 No.236:2015
TemperatureTempering mediumCooling capacity 50 HzCooling capacity 60 Hz
80 °CWaterglycol13.1 kW14.3 kW
20 °CEthanol10.8 kW11.9 kW
10 °CEthanol7.85 kW8.55 kW
0 °CEthanol5.5 kW6 kW
-10 °CEthanol3.5 kW3.9 kW
-20 °CEthanol2 kW2.1 kW
