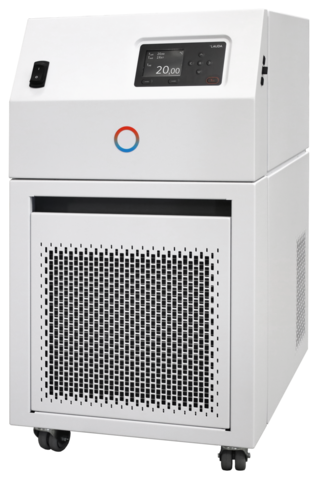

All models are available in air- or water-cooled versions (W) and are equipped with steerable fixed castors. With the integrated web server a browser-based operation is possible. Three additional interface modules can be integrated via slots on the back of the device.
Min. working temperature
-20 °C
Max. working temperature
80 °C
Temperature stability
0.05 ± K
| Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz |
|---|---|---|---|
| 80 °C | Waterglycol | 2.85 kW | 3 kW |
| 20 °C | Ethanol | 2.15 kW | 2.2 kW |
| 10 °C | Ethanol | 1.6 kW | 1.65 kW |
| 0 °C | Ethanol | 1.1 kW | 1.15 kW |
| -10 °C | Ethanol | 0.65 kW | 0.7 kW |
| -20 °C | Ethanol | 0.29 kW | 0.34 kW |
