Universa U 20 TE

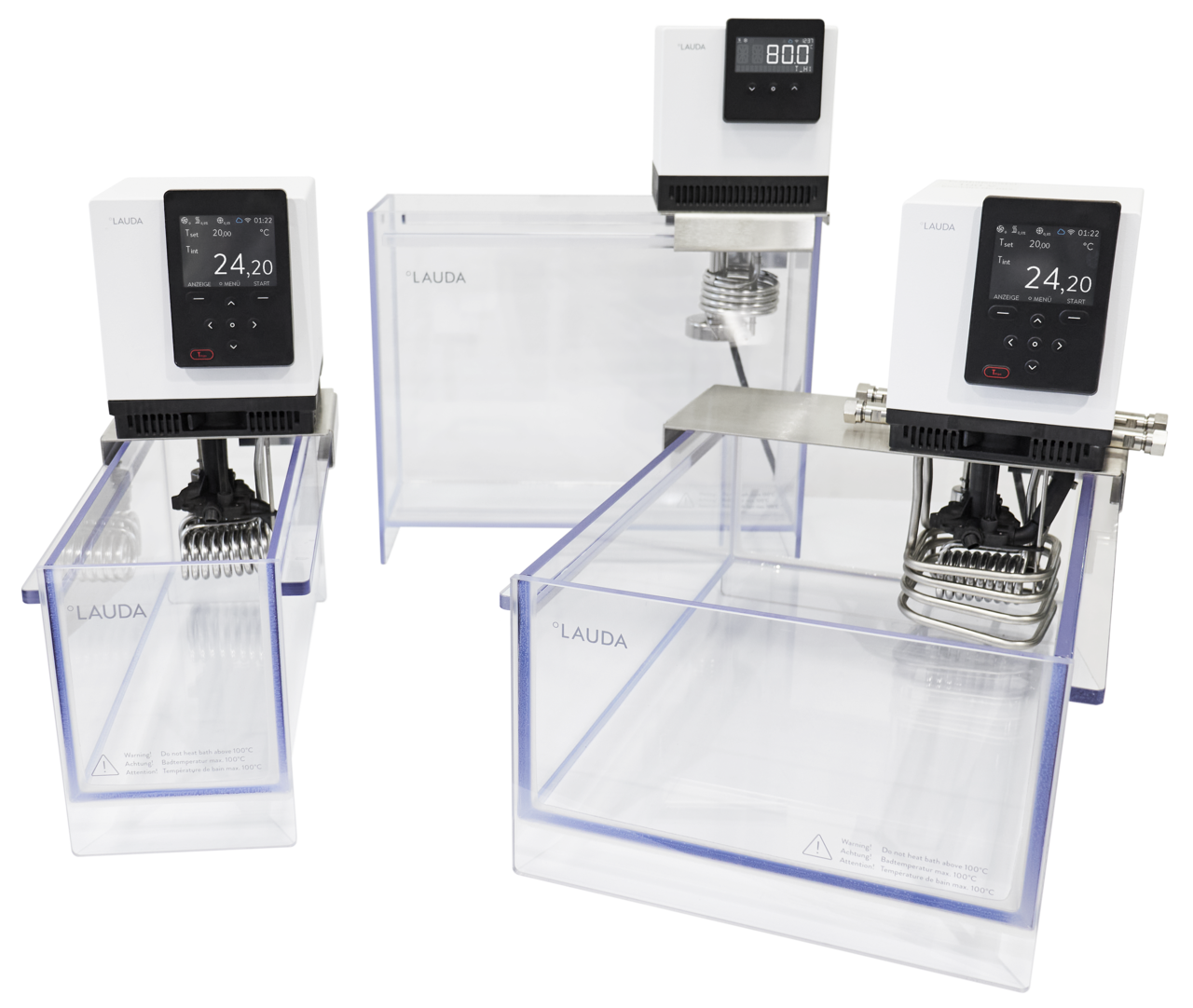

所有配备透明浴槽的Universa恒温浴槽均可通过泵连接套件和浴槽盖进行扩展。

订购编号 : L004724

咨询产品

了解更多关于Universa的优势

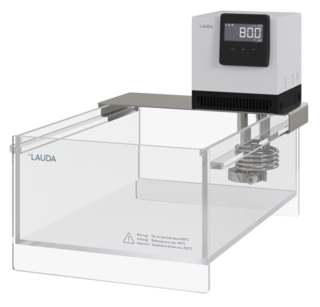

加热恒温器 Universa U 20 TE

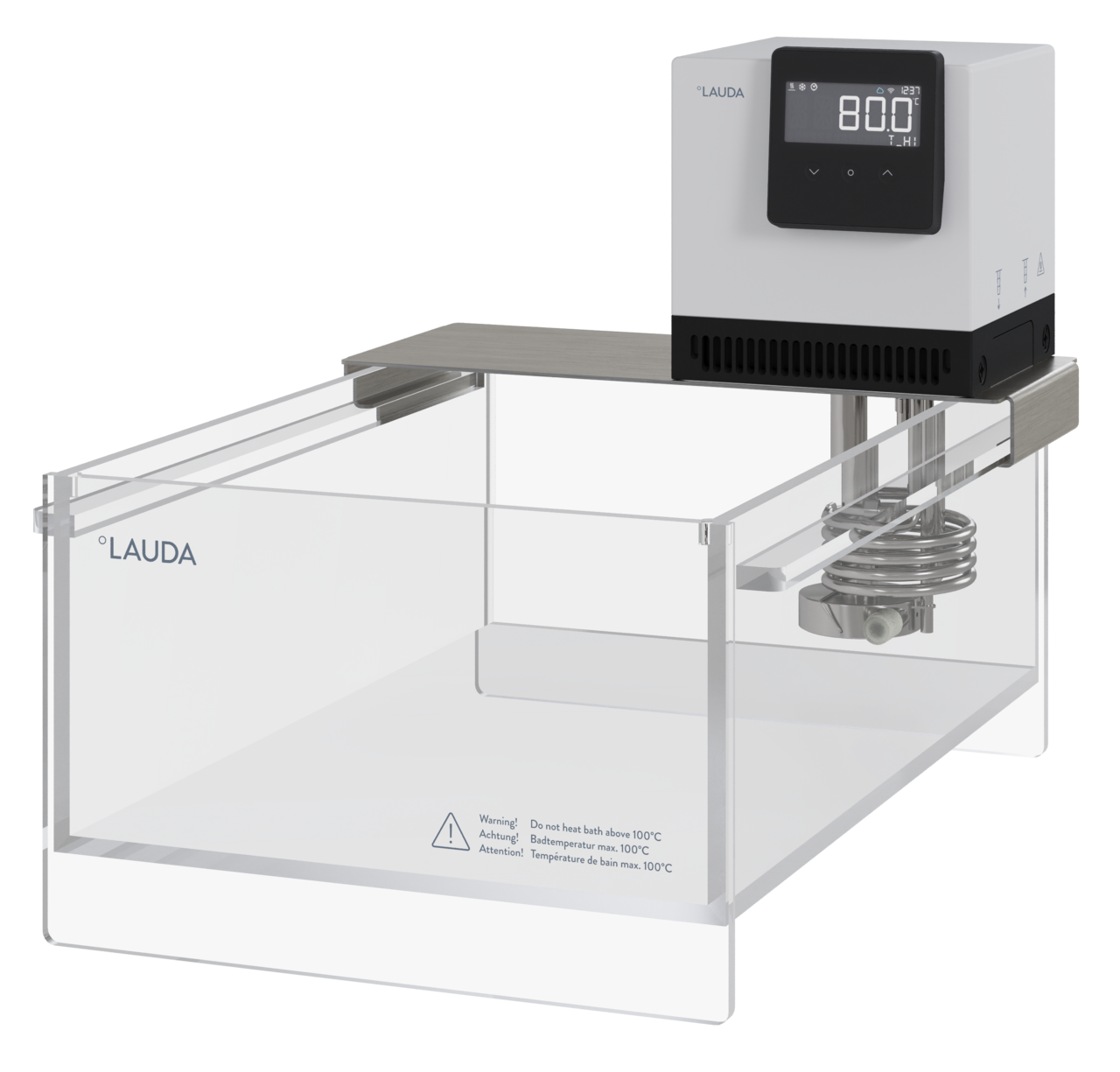

Universa U 20 TE

Universa U 20 TE

Universa U 20 TE

返回至概览加热恒温器

性能特征

Bath circulation thermostat for standard temperature control tasks up to 100 °C – reliable and intuitive to use.

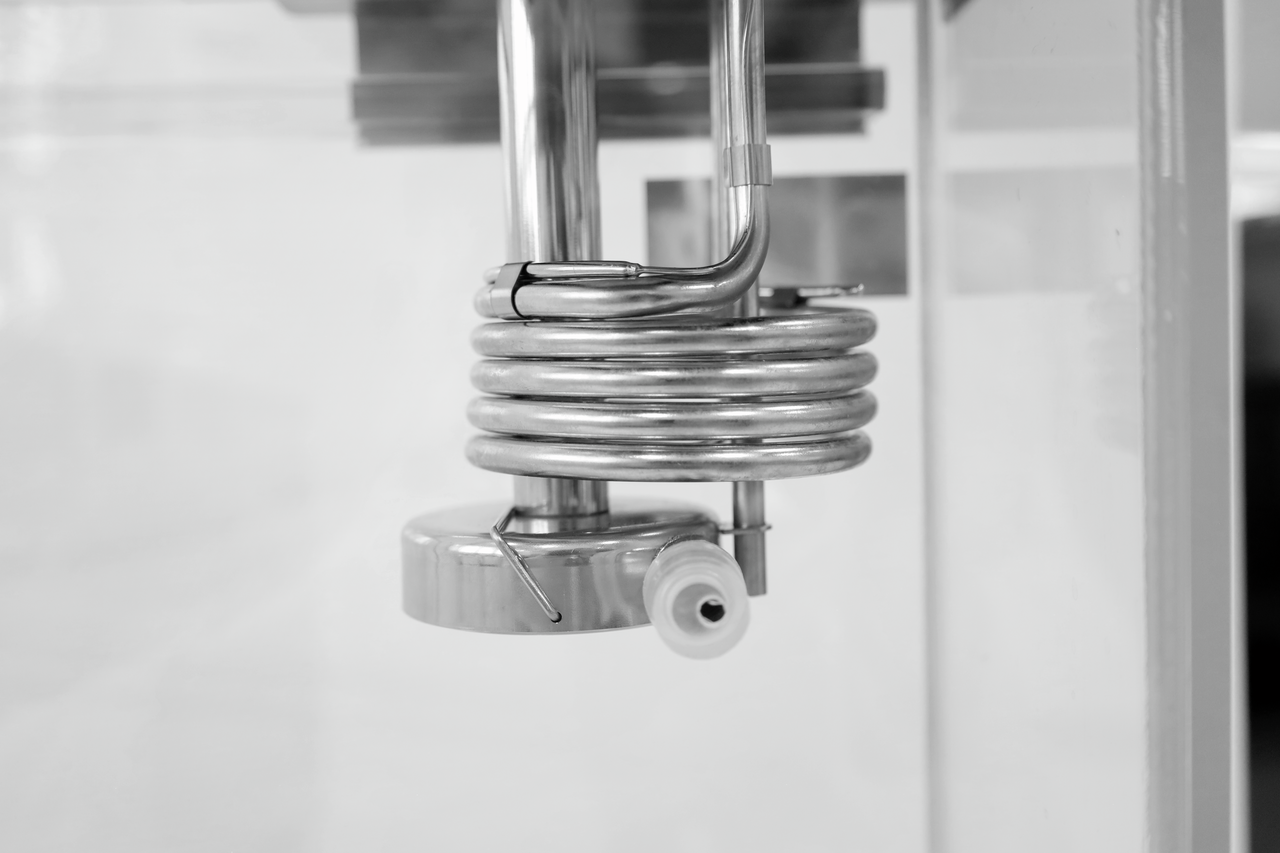

Reliable circulation pump with flow reduction for adjusted volume flow and constant pressure.

Modern connectivity thanks to standard integrated Ethernet and USB interfaces for reliable data communication.

Adaptive bath edge ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapors to protect electronics. To increase operational safety and extend service life.

Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements.

Integrated timer with countdown function for time-controlled temperature control processes.

Proven safety features: low-level and overheating protection for operation with non-flammable liquids, audible and visual alarm signals.

Bright VA LC display with clear two-line display and intuitive 3-button operation.

Intelligent remote control and monitoring: Integrated web server allows flexible remote control in the company network via the LAUDA Command app or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables global, cloud-based data analysis and remote maintenance.

Bath circulation thermostat with advanced electronics ensures precise control accuracy

工作范围

最小工作温度

35 °C

最大工作温度

100 °C

温度稳定性

0.05 ± K

技术特征

工作温度范围

35 ... 100 °C

包括水冷却装置的工作温度范围

20 ... 100 °C

运行温度范围

-30 ... 100 °C

环境温度范围

5 ... 40 °C

温度稳定性

0.05 ± K

最大功率消耗

1.5 kW

电流消耗

12 A

浴室开口（宽 x 深）

300 x 343 mm

最大输送压力

0,2 bar

泵最大输送流量（压力）

15 L/min

尺寸（宽x深x高）

363 x 510 x 381 mm

重量

18 kg

电源供应

100-125 V; 50/60 Hz

电源插头

带插头的电源线 (NEMA 5-15P)

数据表 Universa U 20 TE

下载 - 一般产品数据

设备	设备类别	文件类型	语言	格式	尺寸
LAUDA Command App	恒温浴槽	软件	中文	EXE	95,34 MB	下载文档

适用配件

如需合适的配件，请使用 LAUDA 配件搜索引擎。

LAUDA 配件搜索引擎
