ECO E 20 S

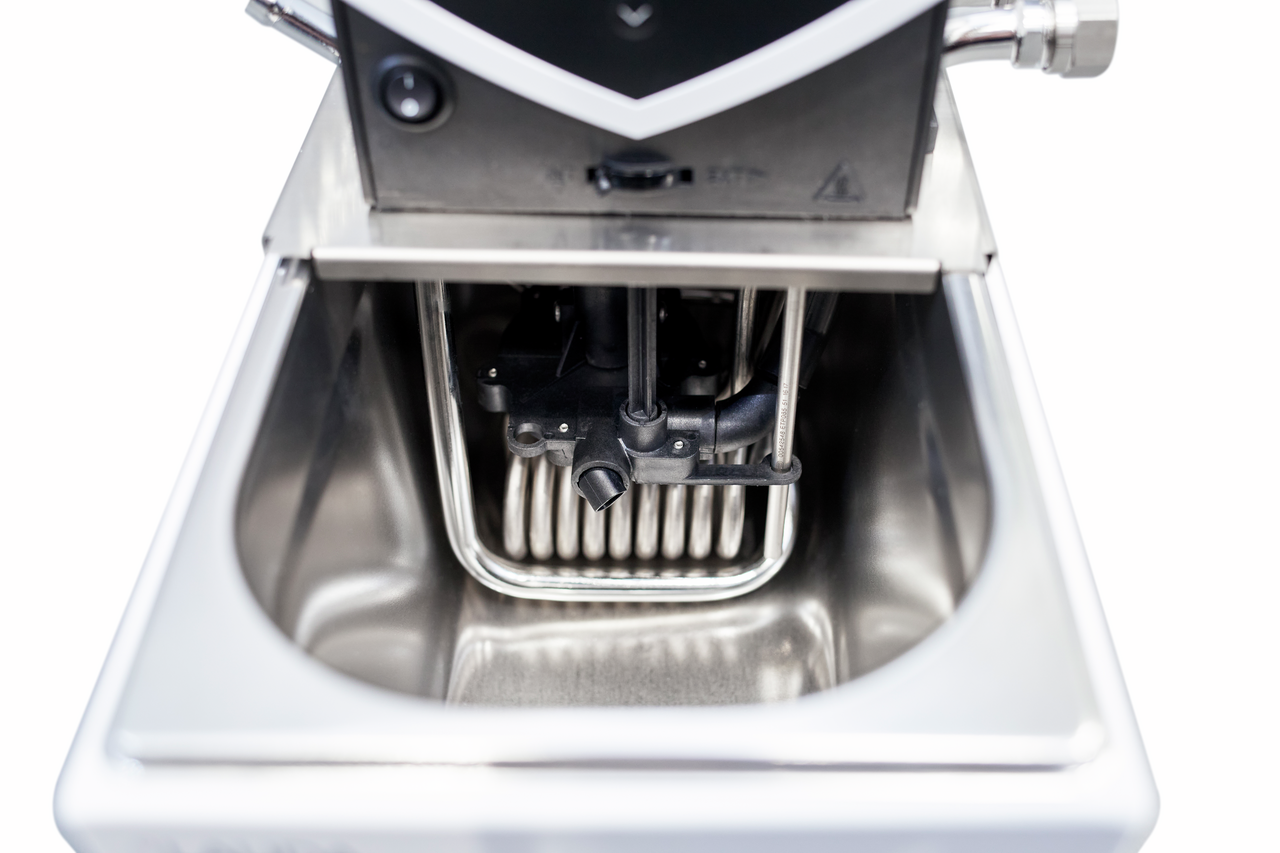

浴槽式恒温器标配冷却盘管。此外,E 4 还配备浴槽盖和用于来接外部应用的泵接口。不锈钢浴槽设备背面的排放旋塞可实现温度控制液的简单和安全更换。

订购编号: L001223

性能特征

Thermostatic bath with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Bath vessel made from stainless steel with drain valve
Monochrome grafic LCD display for simultaneous indication of actual and set value
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Cooling coil as standard
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Integrated programmer, 1 programme with max. 20 segments

工作范围

最小工作温度

20 °C

最大工作温度

200 °C

温度稳定性

0.01 ± K

技术特征

工作温度范围
20 ... 200 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.01 ± K
最大加热功率
1 kW
最大功率消耗
1.1 kW
电流消耗
11 A
最大输送压力
0,6 bar
泵最大输送流量(压力)
22 L/min
最小/最大浴槽容积
13,0 / 19,0 L
尺寸(宽x深x高)
331 x 537 x 376 mm
电源供应
100 V; 50/60 Hz
电源插头
带插头的电源线 (NEMA 5-15P)
