Silicone tube D.i. 6x1 mm wall thickness
Features

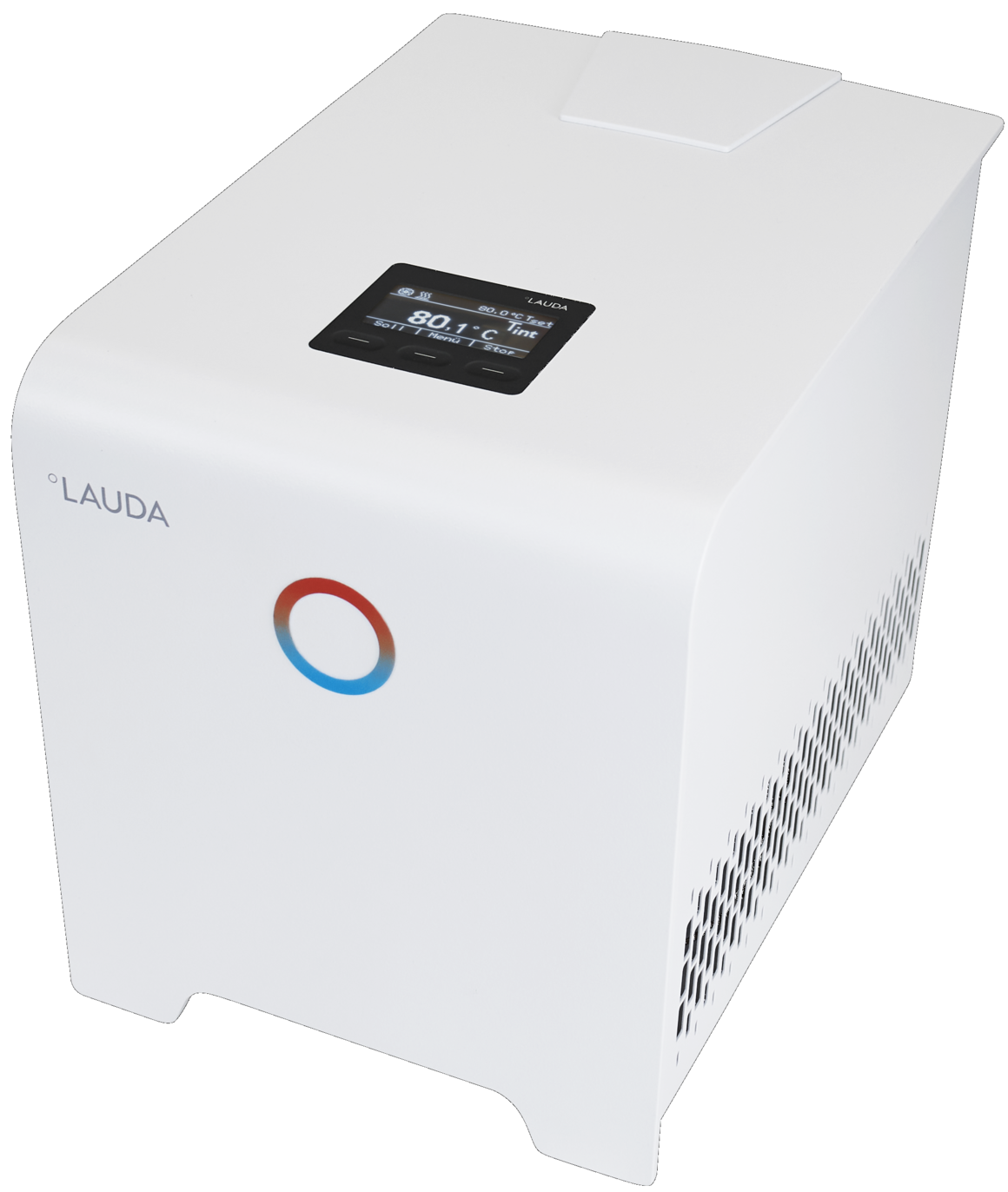

Easy to use recirculation thermostat with integrated cooling system
Facile 3-key user interface
Operates with non flammable liquids (water,water/glycol)
Air cooled system

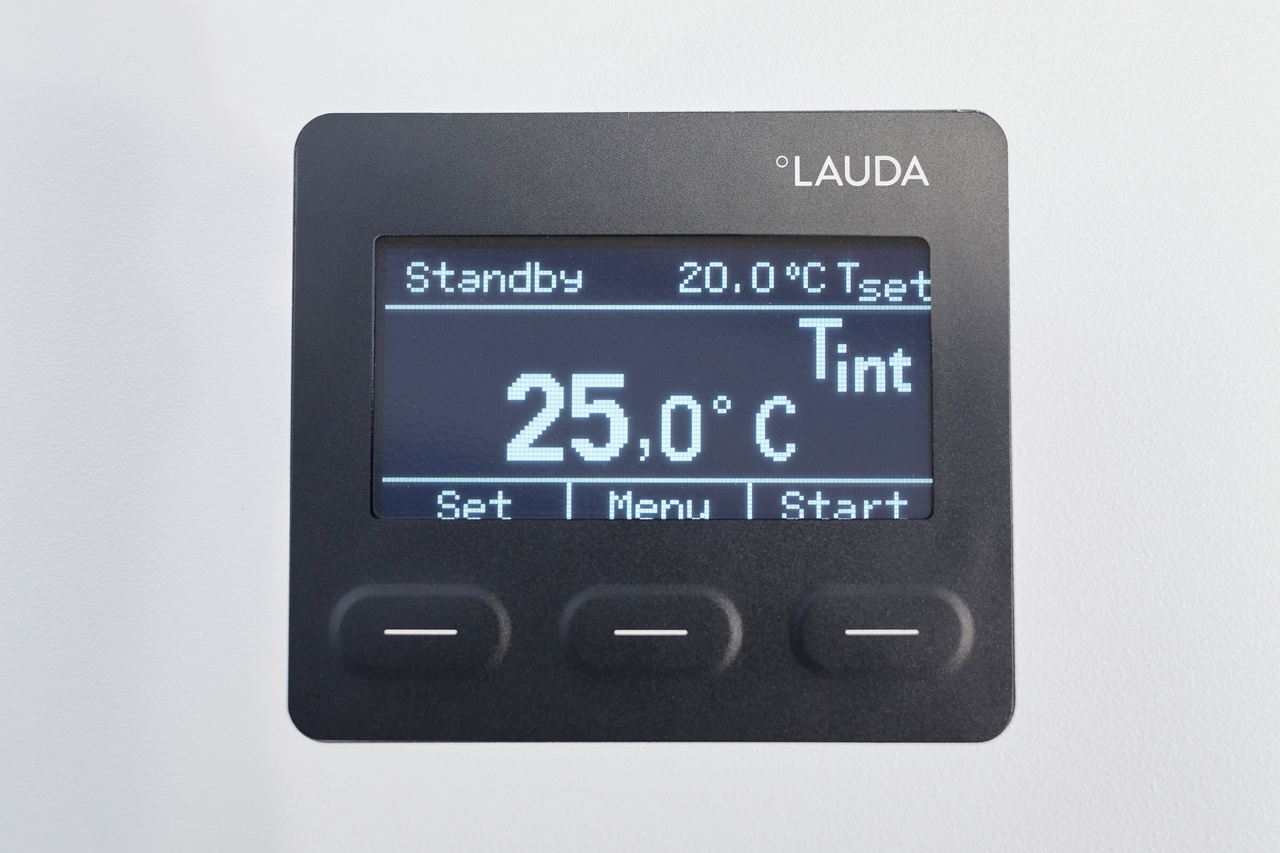

Bright and high-contrast graphic OLED display

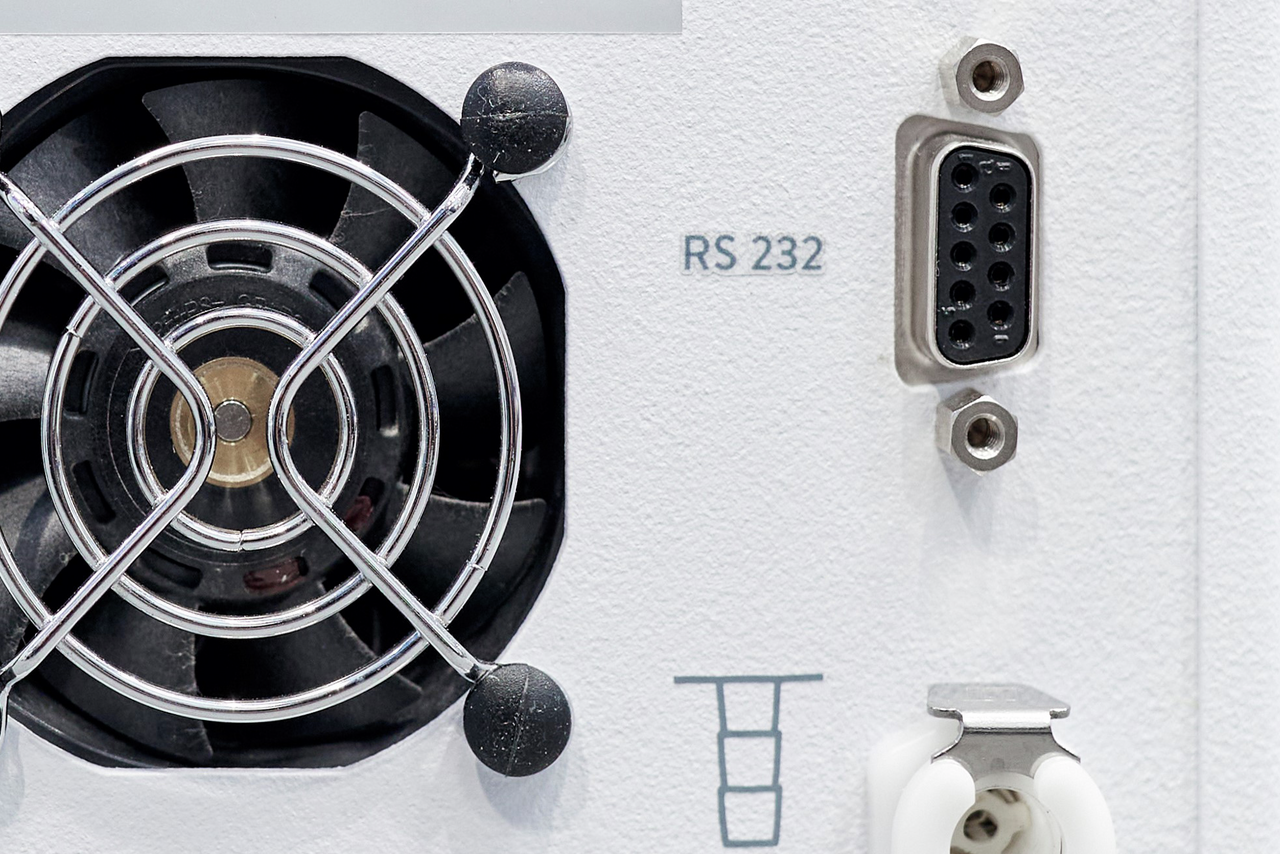

RS 232 interface
Quiet and low vibration level operation due to refrigerant free cooling technology
User friendly menu navigation in plain language
Pump connectors with fast couplings for simple change of applications
Compact overall size and low weight
Working range
Min. working temperature
4 °C
Max. working temperature
80 °C
Temperature stability
0.1 ± K
Technical data (according to DIN 12876)
Working temperature range
4 ... 80 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.1 ± K
Heater power max.
0.2 kW
In / Outlet connection thread (outside)
Quick C. 1/4″
Max. filling volume
0.28 L
Dimensions (WxDxH)
175 x 301 x 266 mm
Weight
7 kg
Noise level
57 dB(A)
Net weight
6.5 kg
Max. power consumption
0.24 kW

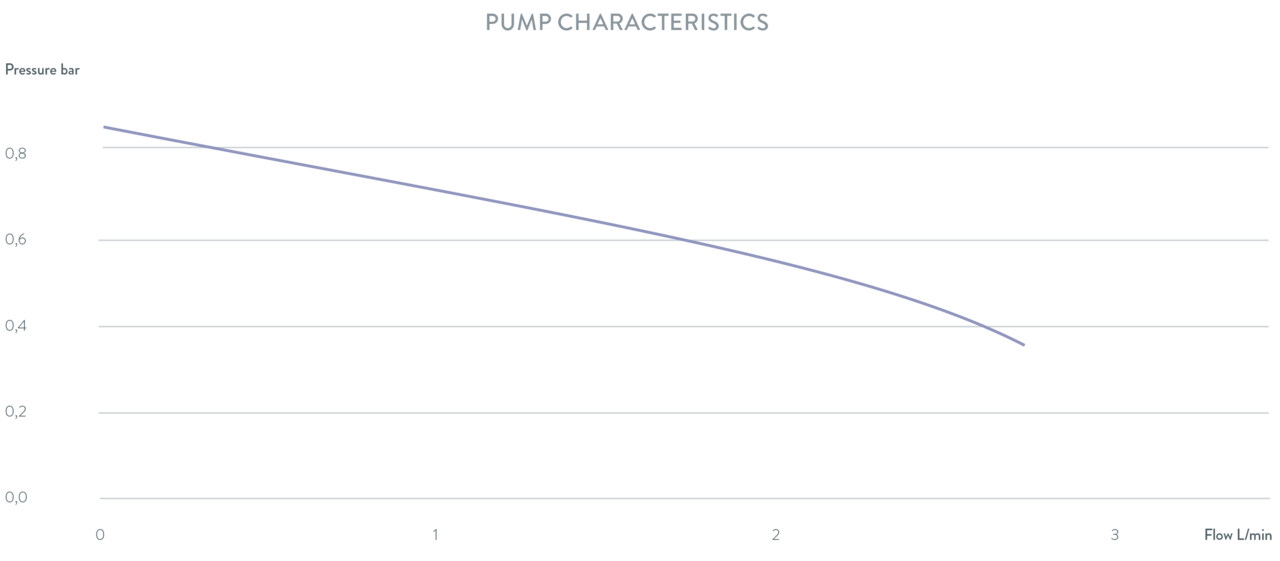

Max. discharge pressure
0,8 bar
Max. pump flow pressure
3 L/min
Power supply
100-240 V; 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
| Temperatur | Temperiermedium | Kälteleistung 50 Hz | Kälteleistung 60 Hz |
|---|---|---|---|
| 20 °C | Ethanol | 0,12 kW | 0,12 kW |
| 10 °C | Ethanol | 0,06 kW | 0,06 kW |
