Proline Brückenthermostate
Bridge thermostats 30 to 300 °C for temperature control thermostating of any bath

Bridge thermostats 30 to 300°C for temperature control of any bath

Intuitive operation with broad temperature range. The Proline bridge thermostats with Varioflex pump are great for temperature control of any bath vessel.

The PB models have a pressure/suction pump, but the PBD models are equipped with stronger pressure pumps. They enable temperature control of deeper baths up to 320 mm.

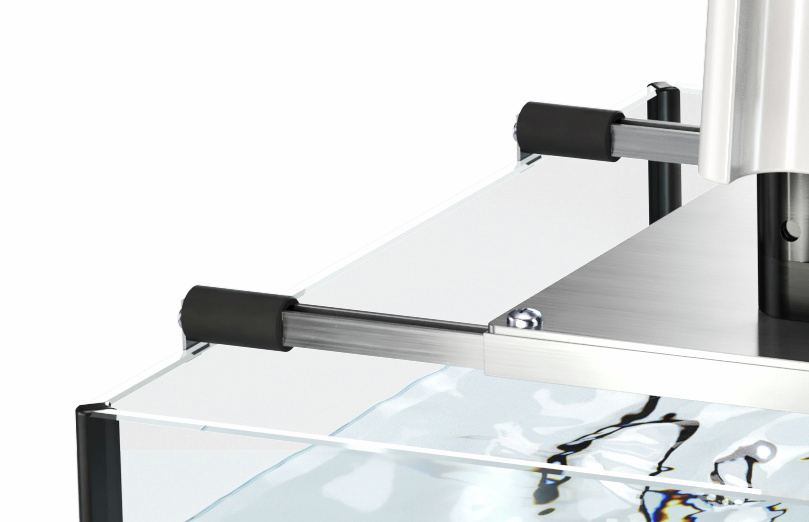

A telescoping rod for baths with a width of 310 to 550 mm, an ergonomic handle and rear and side pump connections are also available.


Benefits and added value

  • Detachable remote control unit for easy and intuitive operation
  • Programmer with 150 temperature-time segments; with Command operating unit, also graphic temperature curve display
  • PowerAdapt system for optimally adapted max. heating output without influencing the mains power supply
  • Low-level protection and adjustable overtemperature protection with acoustic alarm. Float for identifying low or high level.

Working range

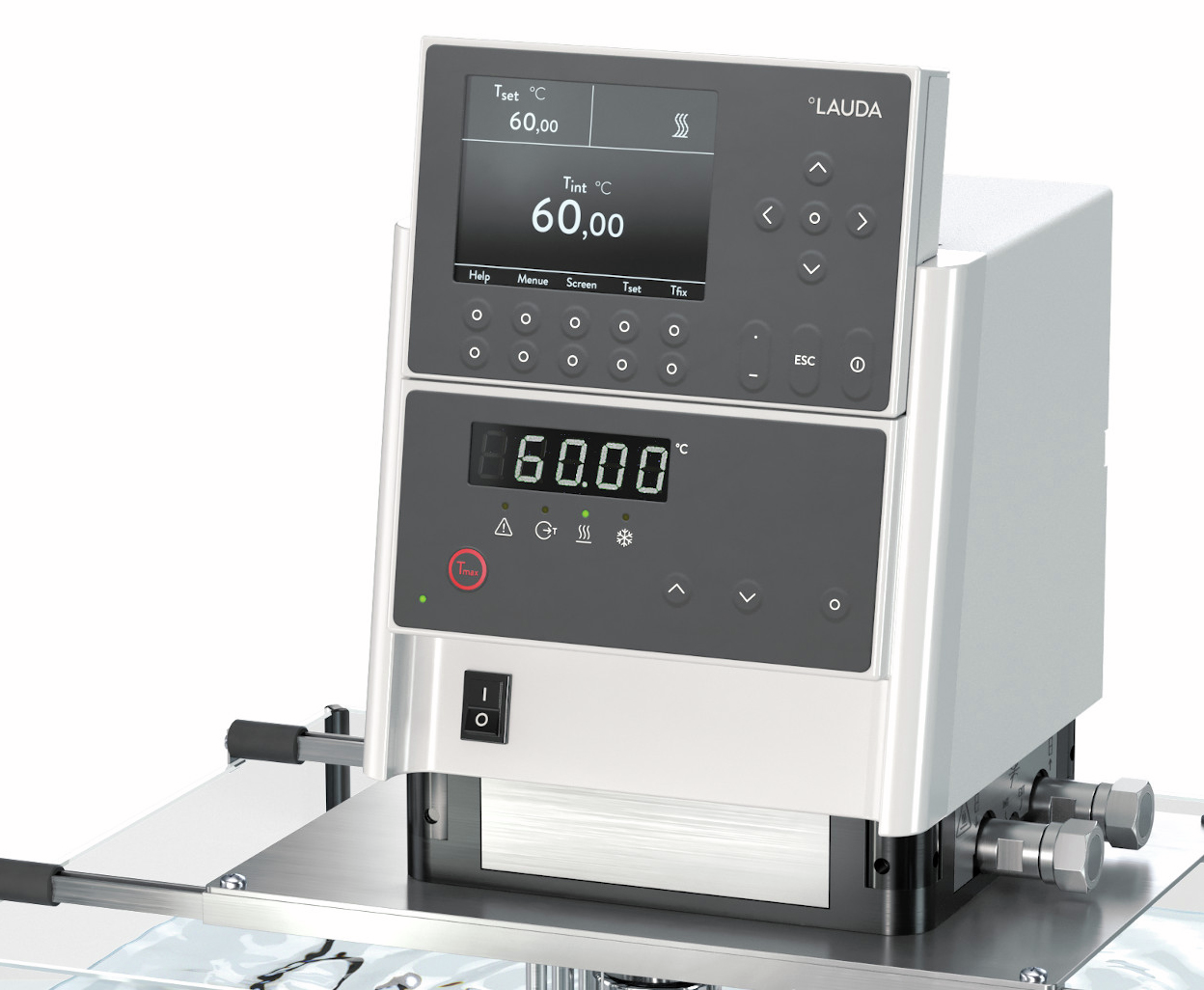

LAUDA Proline bridge thermostats are available with two different control units. The master version is designed for all applications in which the parameters are not changed very often. The removable Command operating unit offers a graphic LCD screen for high operating convenience and optimal functionality.

Min. working temperature

30 °C

Max. working temperature

300 °C

Temperature stability

0.01 ± K

Product lines

Select up to 4 technical parameters that you want to display in the table

Product Min. working temp Max. working temp Heater power max. Integrated interfaces Compare product
Proline PB 30 °C 300 °C 3.6 kW No Details
Proline PB C 30 °C 300 °C 3.6 kW RS 232/485 Details
Proline PBD 30 °C 300 °C 3.6 kW No Details
Proline PBD C 30 °C 300 °C 3.6 kW RS 232/485 Details

Device dimensions

320 x 185 x 576 mm

Proline PBD C

Proline PB C

320 x 185 x 400 mm

Proline PBD

Proline PB
