Proline Bridge thermostats

Proline Bridge thermostats

Bridge thermostats 30 to 300 °C for temperature control thermostating of any bath

The LAUDA Proline bridge thermostats with vario flex pump are great for temperature control thermostating of any bath vessel. The PB models have a pressure/suction pump, but the PBD models are equipped with stronger pressure pumps. They enable temperature control thermostating on deeper baths of up to 320 mm. A telescoping rod for baths with a width of 310 to 550 mm, an ergonomic handle and side pump connections are also available.

LAUDA Proline bridge thermostats are available with two different control units. The master version is designed for all applications in which the parameters are not changed very often. The removable Command operating unit offers a graphic LCD screen for high operating convenience and optimal functionality.

Working temperature min.

30 °C

Working temperature max.

300 °C

Temperature stability

0.01 ± K

Proline PBD C Proline PB C Proline PBD Proline PB
Working temperature min. 30 °C 30 °C 30 °C 30 °C
Working temperature max. 300 °C 300 °C 300 °C 300 °C
Temperature stability 0.01 ± K 0.01 ± K 0.01 ± K 0.01 ± K
Heater power max. 3.6 kW 3.6 kW 3.6 kW 3.6 kW

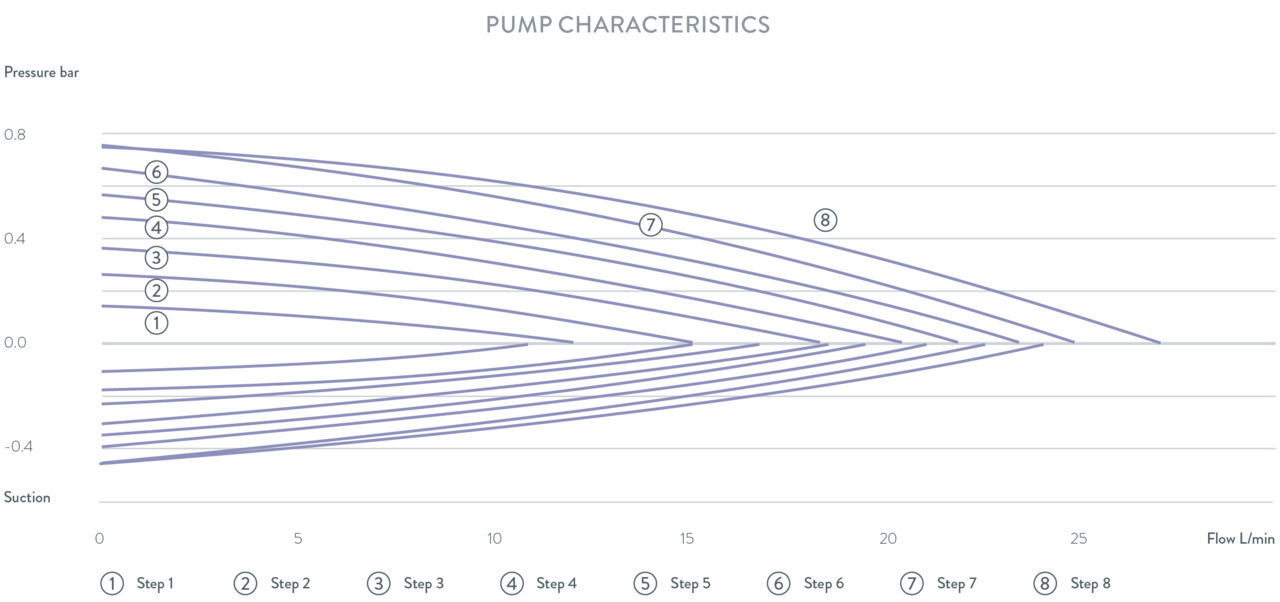

Pump pressure max. 50 Hz 1.1 bar 0.7 bar 1.1 bar 0.7 bar
Pump suction max. 50 Hz 0.4 bar 0.4 bar
Flow rate max. (pressure) 50 Hz 32 L/min 25 L/min 32 L/min 25 L/min
Pump flow max. (suction) 50 Hz 23 L/min 23 L/min
Interfaces integrated RS 232/485 RS 232/485 No No
