ECO Heating thermostats with transparent bath

ECO Heating thermostats with transparent bath

Working temperature min.

20 °C

Working temperature max.

100 °C

Temperature stability

0.01 ± K

ECO ET 15 G ECO ET 20 G ECO ET 12 G ECO ET 6 G ECO ET 15 S ECO ET 6 S ECO ET 20 S ECO ET 12 S
Working temperature min. 20 °C 20 °C 20 °C 20 °C 20 °C 20 °C 20 °C 20 °C
Working temperature max. 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Temperature stability 0.01 ± K 0.01 ± K 0.01 ± K 0.01 ± K 0.01 ± K 0.01 ± K 0.01 ± K 0.01 ± K
Bath volume min. / max. 13.5 / 15.0 L 15.0 / 20.0 L 9.5 / 12.0 L 5.0 / 6.0 L 13.5 / 15.0 L 5.0 / 6.0 L 15.0 / 20.0 L 9.5 / 12.0 L
Bath depth 310 mm 160 mm 160 mm 160 mm 310 mm 160 mm 160 mm 160 mm

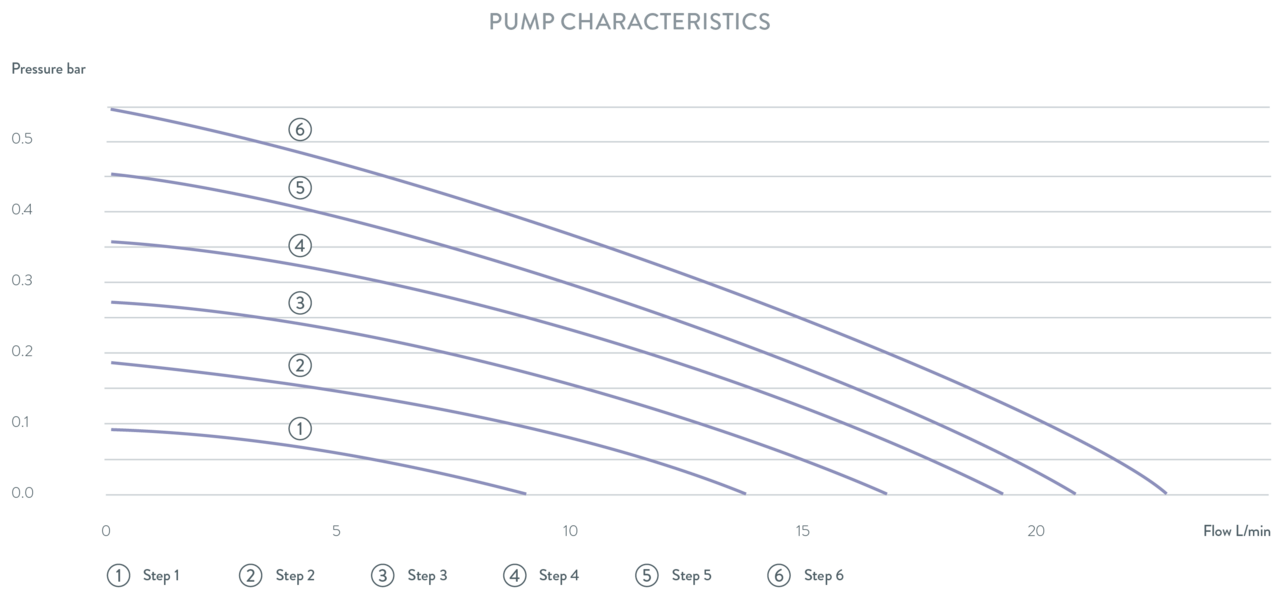

Pump pressure max. 50 Hz 0.55 bar 0.55 bar 0.55 bar 0.55 bar 0.55 bar 0.55 bar 0.55 bar 0.55 bar
Flow rate max. (pressure) 50 Hz 22 L/min 22 L/min 22 L/min 22 L/min 22 L/min 22 L/min 22 L/min 22 L/min
Interfaces integrated Mini USB Mini USB Mini USB Mini USB Mini USB Mini USB Mini USB Mini USB
Download data sheet
Download brochure
Technical data
Compare product
